As manufacturers continue exploring welding automation to improve productivity and address labor shortages, choosing the right welding process becomes just as important as selecting the right automation platform.
We recently conducted a side-by-side comparison using the Miller Copilot™ Cobot to evaluate the performance difference between conventional MIG and HD MIG under identical welding conditions.
The objective was simple: determine how much productivity improvement can be achieved by changing only the welding process while keeping all other variables constant.
Test Setup
To ensure a fair comparison, both welding trials were performed using the same automated welding system and welding parameters. 8mm fillet weld was welded with Conventional MIG & HD MIG processes.
Equipment Used & Weld Set-Up:
- Miller Copilot™ Cobot
- Auto Deltaweld® 500 power source
- Same welding fixture and joint configuration
- Same welding current: 300-310amps (this current range was selected for a particular customer’s case study)
The only variable changed during the test was the welding process:
Results

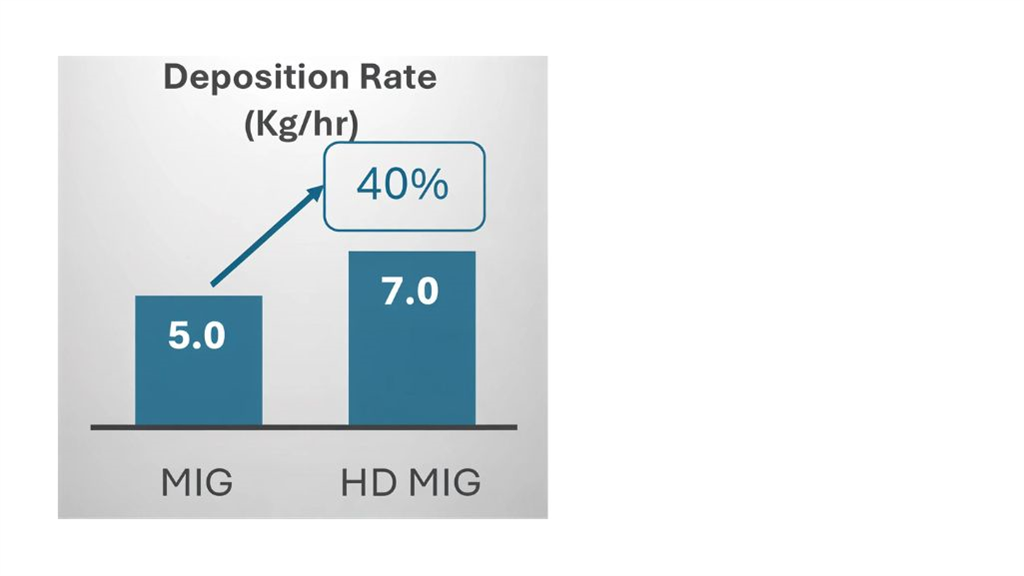

The difference was immediately noticeable in welding travel speeds and deposition rate.
This represents a 40% increase in deposition rate and about 36% increase in travel speeds when using HD MIG. Note that HD MIG can yield up to 9.kg/hrs at 355amps.
Why Does Deposition Rate Matter?
Deposition rate refers to the amount of weld metal deposited within a specific period of time.
Higher deposition rates can help manufacturers:
- Complete welds faster
- Lower heat input, reducing distortion in parts
- Increase throughput
- Improve productivity from existing equipment
- Reduce welding time per component
- Support higher-volume production requirements
For fabricators, manufacturers, and heavy industry applications where productivity directly impacts profitability, even small improvements in deposition rate can create significant gains over time.
